At Upside Down Labs

We work on awesome open-source projects to help you amplify your efforts and rectify your path to success!

Our Goals

Top notch documentation

Each project should come with clear and detailed documentation. We work hard to make sure it stays that way!

Everything Open-Source

Keeping everything open-source, It's a community driven approach for creating world class hardware and software for all!

Unique hardware

Creating hardware worth spending your money on. The unique hardware is our selling point!

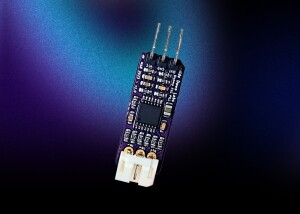

BioAmp EXG Pill

Professional-grade analog front-end amplification for ECG, EMG, EOG, and EEG biosensing on one tiny board

The very first and one-of-a-kind open-source product that can measure all biopotential signals (EEG, EMG, EOG, ECG) accurately using a single chip without any dedicated hardware or software filters. It got featured on Hackaday, Hackster, CircuitState, Electromaker to name a few, and gained popularity in the market because of its versatility, small size, and ease of use.

UDLabs Challenge 2021

Showcase your awesome hardware/software project!

OUR DESIGNS

BioAmp EXG Pill

Small and elegant BioAmp, only 30.00 x 10.00 mm.

MSP430G2553 Feather

Adafruit feather form factor MSP430G2553 development board.

MSP430 Breadstick

A brand new MSP430G2553 based development board.

BioAmp v1.5

Single chip Biopotential amplifier for ECG, EMG, EOG, and EEG.

ADS1292R Breakout

2ch ECG + 1ch Respiration with 24bit resolution board.

TXB0108

8ch Bi-Directional logic level converter.

Candy UART

Candy size USB to UART bridge using CH340C.

BioAmp EXG Pill on Crowd Supply

OUR AWESOME PARTNERS & DONORS!

They help us keep making awesome Open-Source project,

you can sponsor our projects if you like what we are doing here.

OSHPARK

OSHPARK is providing perfect purple PCBs for our OpenSource projects.

Project Encephalon

In partnership with Project Encephalon we spread Neuroscience knowledge.

Project Encephalon Black LOGO

PCBWAY

They sponsor our projects and help us make our designs into products.

BioAmp EXG PillProfessional-grade analog front-end amplification for ECG, EMG, EOG, and EEG biosensing on one tiny board

BioAmp EXG Pill is a small, powerful Analog Front End (AFE) biopotential signal acquisition board that can be paired with any 5 V Micro Controller Unit (MCU) with an ADC.
